| Gyártói megnevezés: | ESM-2H201 |
| Gyártói cikkszám: | 085620 |
| Cikkszám: | EUCHN-085620 |

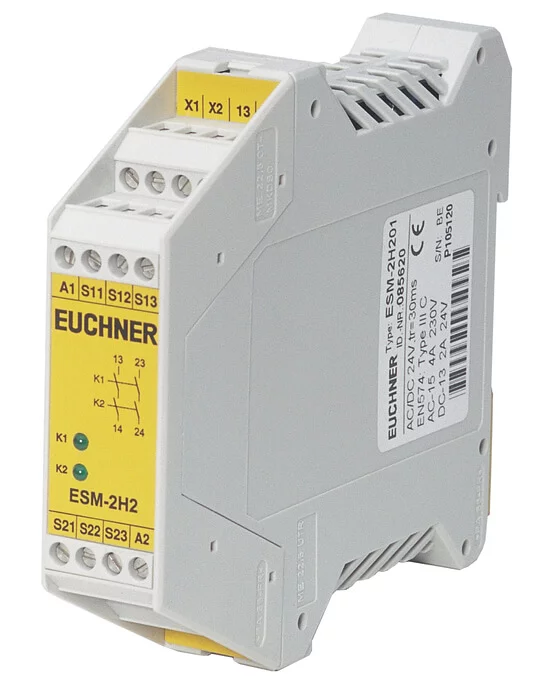

| Megnevezés teljes név: | EUCHNER biztonsági modul ESM-2H201 |
Housing material Housing Polyamide PA6.6 Weight Net 0,23 kg Ambient temperature At UB = 24V AC -15 ... 40 °C At UB = 24V DC -15 ... 60 °C Degree of protection IP20 Mechanical life operating cycles 10 x 106 Contact material AgSnO2 Mounting method Mounting rail 35mm according to DIN EN 60715 TH35 Connection Connection terminals Length of control cable With conductor cross-section 0.75mm2 1000 m Safety contacts 13/14, 23/24 Number of safety contacts 2 Elektromos csatlakoztatási értékek Operating voltage AC/DC 24 V -10% ... +10% Rated insulation voltage Ui 250 V Rated impulse withstand voltage Uimp Leakage path/air gaps 4 kV Overvoltage category according to IEC EN 60664-1 3 Reverse polarity protection On version UB =24V DC Connection rating at 24V DC 1,5 W Degree of contamination (external, according to EN 60947-1) 2 Connection cross-section 0,14 ... 2,5 mm2 Test voltage Control system/contacts 2,5 kV Control voltage On S12-S13 and on S22 and S23 24 V Control current Both push buttons 40 mA 2x LED indicator 2 status displays (green) for relays K1 and K2 Safety contacts 13/14, 23/24 Type of output NO Relay contacts, floating and positively driven (redundant) Switching voltage AC max.250 V DC max.24 V Switching current min.20 mA at 24V Fusing External contact fuses (safety circuit) according to IEC 60269-1 10A gG Utilization category acc. to EN 60947-5-1 AC-15 3A, 250V DC-13 3A, 24V AC-12 6A ohmic load, 250V DC-12 6A ohmic load, 24V Breaking capacity according to UL 6A 250V AC / 2A 24V DC Delay time After operation of the push buttons max.0,02 s Response delay time Release time max.0,02 s Synchronization time max.0,5 s Egyebek In compliance with EN 60947-5-1: 2004+A1: 2009; EN ISO 13849-1: 2015; EN 62061: 2005 + AC: 2010 + A1: 2013 + A2: 2015; EN 50581: 2012 (RoHS) Megbízhatósági értékek az EN ISO 13849-1 szerint Performance Level PL e Category 4 PFHD 1.2 x 10-8 Number of switching cycles ? 3 A at 24 V DC max.22500 1/Jahr ? 1 A at 24 V DC max.100000 1/Jahr ? 0.1 A at 24 V DC max.400000 1/Jahr
