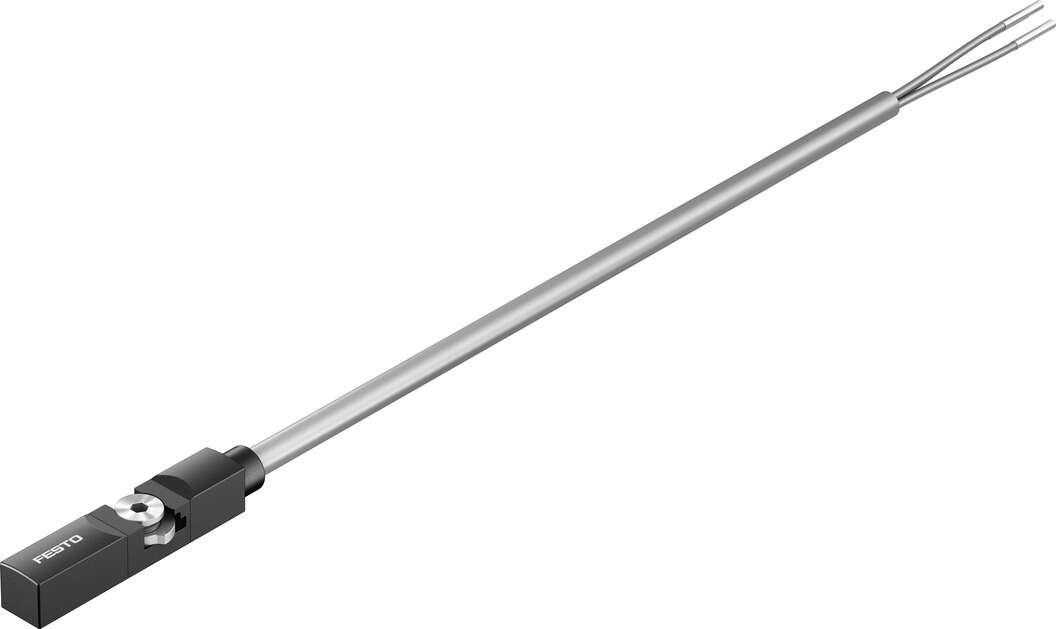

FESTO KÖZELÍTÉS KAPCSOLÓ

Design For T-slot Based on standard EN 60947-5-2 Symbol 00991152 Approval RCM trademark CE mark (see declaration of conformity) To EU EMC Directive To EU Explosion Protection Directive (ATEX) KC mark KC-EMV Explosion protection Zone 2 (ATEX) Zone 22 (ATEX) ATEX category gas II 3G Explosion ignition protection type for gas Ex nA IIC T4 X Gc ATEX category dust II 3D Explosion ignition protection type for dust Ex tc IIIC T120°C X Dc Explosion ambient temperature -40°C <= Ta <= +85°C Special characteristics Resistant to cooling lubricants Alkali resistant Acid resistant Note on materials RoHS-compliant Free of halogen Instructions on use Support / actuator-sensor overview The right sensor for the actuator Measured variable Position Measuring principle Magneto-resistive Ambient temperature -40 °C ... 85 °C Repetition accuracy 0.2 mm Switching output PNP Switching element function N/O contact Switch-on time ? 1 ms Switch-off time ? 1 ms Max. switching frequency 180 Hz Max. output current 100 mA Max. output current using mounting kits 100 mA Max. switching capacity DC 2.8 W Max. switching capacity DC using mounting kits 2.8 W Voltage drop < 1.5 V Inductive protective circuit Adapted to MZ, MY, ME coils Min. load current 0 mA Off-state current < 0.05 mA Short circuit current rating yes Overload protection Available Rated operational voltage DC 24 V Operational voltage range DC 5 V ... 30 V Residual ripple 10 % Reverse polarity protection For all electrical connections Electrical connection 1, connection type Cable Electrical connection 1, connector system Open end Electrical connection 1, number of connections/cores 3 Connection outlet orientation In-line Test conditions cable Bending strength: to Festo standard Energy chain: 5 million cycles, bending radius 75 mm Torsional resistance: > 300,000 cycles, ± 270°/0.1 m Cable length 5 m Cable characteristic Standard + energy chain Cable sheath colour grey Material cable sheath TPE-O Material insulating sheath PP Wire ends Wire end sleeve Type of mounting Screw-clamped Insertable in the slot from above Tightening torque 0.1 Nm ... 0.6 Nm Max. tightening torque 0.6 Nm Mounting position optional Product weight 47.6 g Housing colour Black Material housing PA PP High-alloy stainless steel Switching status indication Yellow LED Function reserve indication Orange LED Ambient temperature with moving cable -20 °C ... 85 °C Degree of protection IP65 IP68 IP69K Immunity to magnetic fields Design insensitive to permanent magnetic fields < Bon PWIS conformity VDMA24364-B2-L Suitable for use with food See supplementary material information
