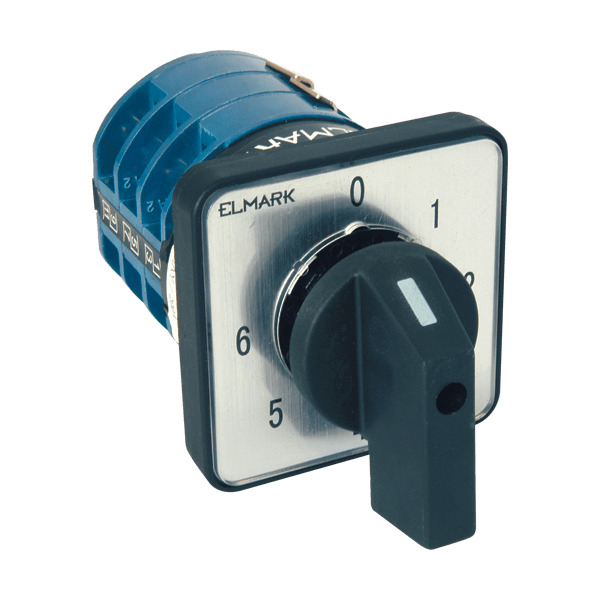

| ELMARK | |
| Gyártói cikkszám | 492324 |
| Márka | ELMARK |
| Cikkszám | ELM-492324 |
|
Leírás: - Power supply voltage: 230/400V, 50Hz
- Number of levels: 3
- Number of positions: 7
- Insulation voltage: 690V
- Impulse voltage withstand: 6000V
- Mechanical wear resistance: 3?105 commutation cycles
- Operating temperature: -10°? - +50°?
- Humidity: 35-85%RH
- Commutation capacity: 32-63?
- Resistant to UV rays plastic
- Cable connection: screw joining
- Tightening torque of the bolt: 1.33Nm
- Maximum section of the power supply conductors: 16.0mm2
Mounting:
- Directly to the control panel
- Thickness of the surface: max 5mm
Standards: EN 60947-1; EN 60947-3-1
|
|
