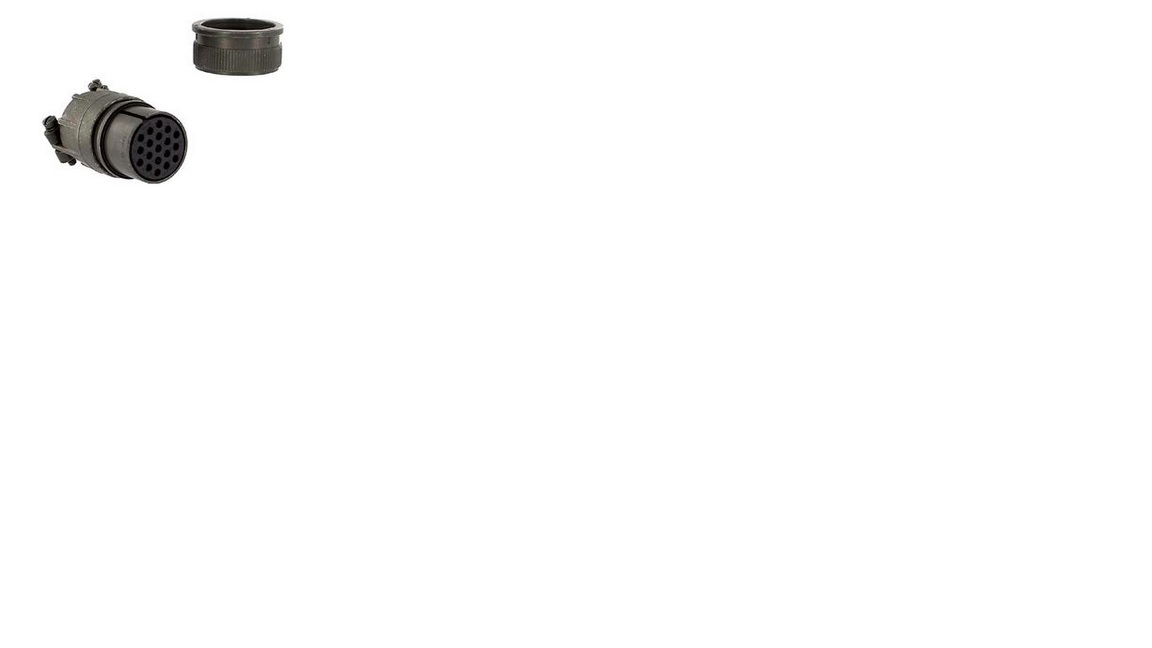

> Ipari csatlakozó aljzat amphenol MS3106F22-14S
Ipari csatlakozó aljzat amphenol MS3106F22-14S
Gyártói megnevezés:
|
MS3106F22-14SAMPHENOL
|
Cikkszám:
|
MI-ETG1
|
Megnevezés teljes név:
|
Ipari csatlakozó aljzat amphenol MS3106F22-14S
|
több
keyboard_arrow_down
keyboard_arrow_up
Leírás
MIL-DTL-5015
Sealing: Meets IP67
Shielding: Yes
Connector Type: Circular
Connector Style: Plug
Mounting Type: Cable
Contacts, # of: 19
Contact Style: Pin
Termination Method: Solder
Insert Arrangement: 22-14
Contact Size: 19#16
Contacts Supplied: Yes
Contact Material: Copper Alloy
Contact Plating: Silver
Shell Material: Aluminum Alloy
Shell Plating: Olive Drab Chromate over Cadmium
Shell Color: Olive Drab
Insert Material: Neoprene
Grommet & Seals Material: Neoprene
Amperage Rating: 13A
Operating Voltage AC V RMS Max: 500
Operating Temperature °F (°C): -67 to +257 (-55 to +125)
Contact Mating Life: 100
Insert Rotation/Keying: Normal
Operating Voltage DC: 700
Orientation: Straight
Service Rating: A
Endbell Type: Cable Clamp
Export Class: EAR / EAR99
RoHS: No
Weight (lbs): 0.23251
Weight (g): 105.50000
Ipari csatlakozó aljzat amphenol MS3106F22-14S
Nincs készleten
×
Adatok
Gyártói megnevezés
MS3106F22-14SAMPHENOL
Megnevezés teljes név
Ipari csatlakozó aljzat amphenol MS3106F22-14S
Leírás
MIL-DTL-5015
Sealing: Meets IP67
Shielding: Yes
Connector Type: Circular
Connector Style: Plug
Mounting Type: Cable
Contacts, # of: 19
Contact Style: Pin
Termination Method: Solder
Insert Arrangement: 22-14
Contact Size: 19#16
Contacts Supplied: Yes
Contact Material: Copper Alloy
Contact Plating: Silver
Shell Material: Aluminum Alloy
Shell Plating: Olive Drab Chromate over Cadmium
Shell Color: Olive Drab
Insert Material: Neoprene
Grommet & Seals Material: Neoprene
Amperage Rating: 13A
Operating Voltage AC V RMS Max: 500
Operating Temperature °F (°C): -67 to +257 (-55 to +125)
Contact Mating Life: 100
Insert Rotation/Keying: Normal
Operating Voltage DC: 700
Orientation: Straight
Service Rating: A
Endbell Type: Cable Clamp
Export Class: EAR / EAR99
RoHS: No
Weight (lbs): 0.23251
Weight (g): 105.50000
