| Család | flood flat |
| Gyártói cikkszám | 50143 |
| Szín | FEKETE |
| Márka | SYLVANIA |
| Cikkszám | SYL0050143 |
|

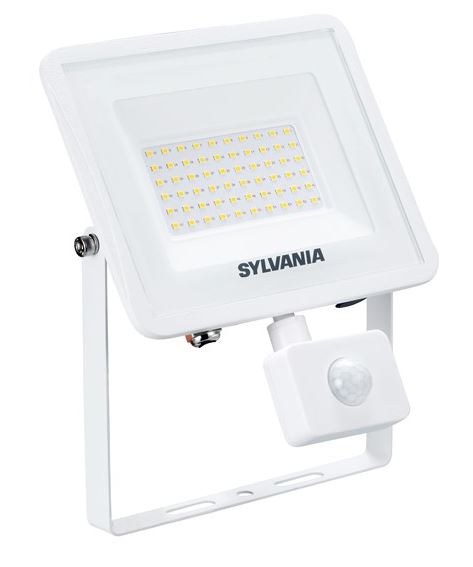

Leírás: Product name Start Flood Flat IP54 PIR 4650LM 830 White
Technology LED
General application Residential & Consumer
Operating temperature range (°C) -20°C - 40°C
ETIM Class EC001744
E-number FI 4579553
Warranty 3 years
Optical data
Fixture luminous flux (lm) 4650
Luminaire efficacy (lm/W) 101
Colour temperature (K) 3000
Light colour Warm White
CRI (Ra) 80
Colour Variation Initial (SDCM) SDCM5
Beam Angle (°) 110
Photobiological Risk Group RG1
Electrical data
Total power consumption (W) 46
Mains voltage (V) 220-240V
Lamp power factor 0.9
Electrical protection Class I
Dimmable No
Drive current (mA) 154
Inrush Current (A) 20.6
Inrush Duration (µs) 500
Glow Wire Test (°C) 650
Energy Efficiency Class (A->G) of contained light source F
Nominal Frequency (Hz) 50/60Hz
LED Flickering Rate Low (6% - 20%)
Max. Luminaires per 10A C Breaker 15
Max. Luminaires per 13A C Breaker 19
Max. Luminaires per 16A C Breaker 25
Max. Luminaires per 20A C Breaker 30
Max. Luminaires per 10A B Breaker 9
Max. Luminaires per 13A B Breaker 12
Max. Luminaires per 16A B Breaker 14
Max. Luminaires per 20A B Breaker 18
Lifetime data
Lifespan L70 B50 90000
Lifespan L80 B50 90000
Lifespan L80 B20 58000
Physical data
Housing colour White
IP rating IP54
IK rating IK06
IK rating of sensor IK05
Nominal Product Length (mm) 235
Nominal Product Width (mm) 190
Nominal Product Height (mm) 58
Weight (kg) 0.8
|
|
