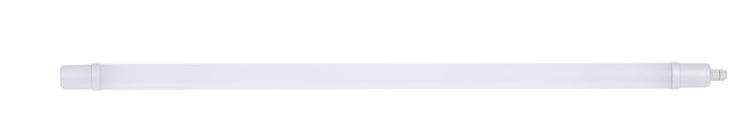

Product name SylSplash 1200 IP65 3700lm 840 Technology LED Cap/Base N/A Housing PC Polycarbonate General application Logistics & Industry Operating temperature range (°C) -20°C - 40°C Performance ambient temperature Tq (°C) 25 ETIM Class EC002892 E-number FI 4278193 Warranty 3 years Optical data Fixture luminous flux (lm) 3700 Luminaire efficacy (lm/W) 103 Colour temperature (K) 4000 CRI (Ra) 80 Colour Variation Initial (SDCM) SDCM5 Beam Angle (°) 125 Distribution type Diffuse Photobiological Risk Group RG0 Electrical data Total power consumption (W) 36 Mains voltage (V) 220-240V~ Lamp power factor 0.9 Electrical protection Class II Control gear type LED driver constant current Dimmable No Drive current (mA) 90 Drive current - Range (mA) 145mA / 175mA Inrush Current (A) 12 Inrush Duration (µs) 350 Glow Wire Test (°C) 650 Energy Efficiency Class (A->G) of contained light source E Nominal Frequency (Hz) 50/60Hz Max. Luminaires per 10A B Breaker 10 Max. Luminaires per 13A B Breaker 15 Max. Luminaires per 16A B Breaker 20 Max. Luminaires per 20A B Breaker 25 Lifetime data Lifespan L70 B50 30000 Lifespan L70 B20 30000 Lifespan L70 B10 30000 Lifespan L80 B50 30000 Lifespan L80 B20 28000 Lifespan L80 B10 24000 Lifespan L90 B50 21000 Lifespan L90 B20 15000 Lifespan L90 B10 13000 Physical data Housing colour White IP rating IP65 IK rating IK04 Diffuser finish Opal Diffuser material PC Polycarbonate Nominal Product Length (mm) 1250 Nominal Product Width (mm) 53 Nominal Product Height (mm) 35 Weight (kg) 0.3
