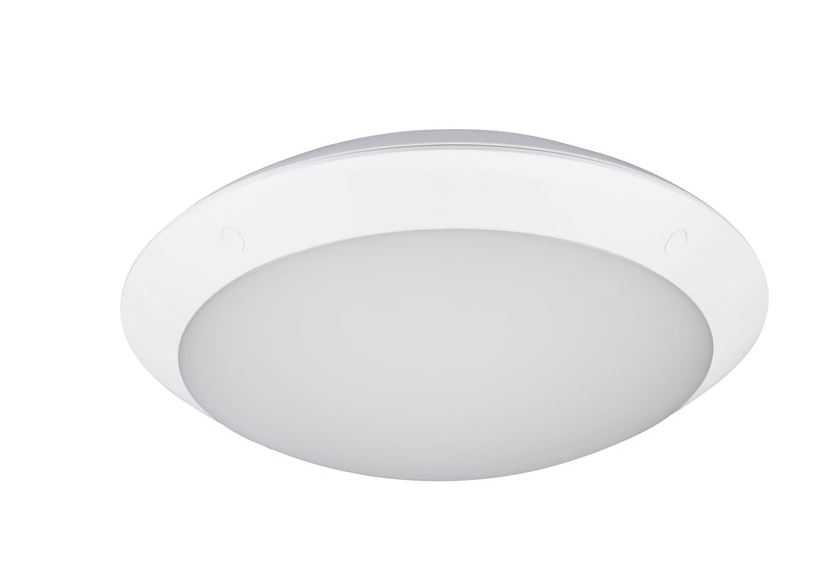

Product name START SURFACE IP66 1450LM 830 EM3 IK10 WHT Technology LED Cap/Base N/A Housing PC Polycarbonate Mount Ceiling surface mounting Environment Indoor, Outdoor General application Hospitality Operating temperature range (°C) 0°C - 25°C Performance ambient temperature Tq (°C) 25 ETIM Class EC002892 Warranty 5 years Optical data Fixture luminous flux (lm) 1450 Luminaire efficacy (lm/W) 104 LOR (%) 100 Colour temperature (K) 3000 Colour Code 830 Light colour Warm White CRI (Ra) 80 Colour Variation Initial (SDCM) SDCM6 Adjustable chromaticity N Beam Angle (°) 120 Glare control < 25 Photobiological Risk Group RG0 Lumen maintenance at end of nominal life (%) 70 Luminous flux (emergency) (lm) 124 Emergency duration (h) 3 Electrical data Total power consumption (W) 14 Mains voltage (V) 220-240V Lamp power factor 1 THD (at 230 V, 50 Hz, full load, at 100% dimming level) ? xx.x % 15 Electrical protection Class II Control gear required No Control gear type LED driver constant current Control gear mounting Integrated Dimmable No Drive current (mA) 350 Inrush Current (A) 5 Inrush Duration (µs) 100 Energy Efficiency Class (A->G) of contained light source D Nominal Frequency (Hz) 50/60Hz LED Flickering Rate Ultra low (5% or less) Max. Luminaires per 10A C Breaker 90 Max. Luminaires per 13A C Breaker 117 Max. Luminaires per 16A C Breaker 144 Max. Luminaires per 20A C Breaker 180 Max. Luminaires per 10A B Breaker 72 Max. Luminaires per 13A B Breaker 93 Max. Luminaires per 16A B Breaker 115 Max. Luminaires per 20A B Breaker 144 Lifetime data Lifespan L70 B50 50000 Physical data Housing colour RAL 9003 - Signal white IP rating IP66 IK rating IK10 Diffuser finish Opal Diffuser material PC Polycarbonate Nominal Product Length (mm) 350 Nominal Product Width (mm) 350 Nominal Product Height (mm) 111 Nominal Product Diameter (mm) 350 Weight (kg) 1.4
