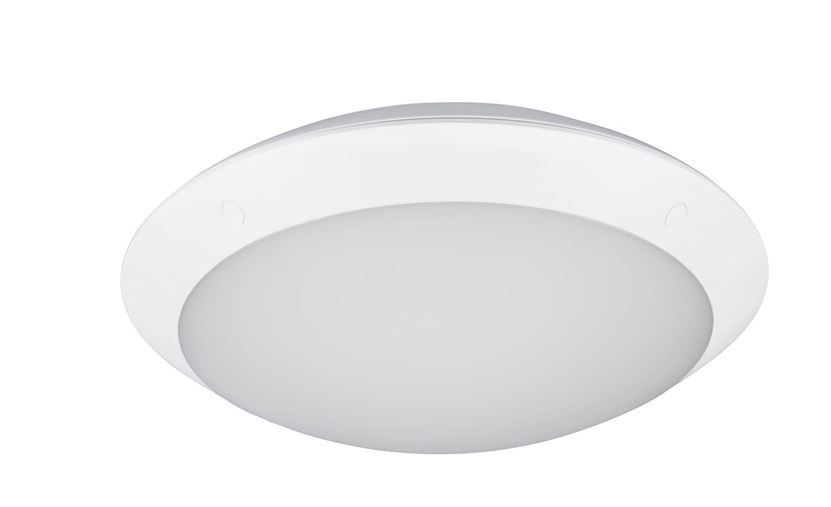

Product name START Surface IP66 860-2800LM 840 IK10 WHT
Technology LED
Cap/Base N/A
Housing PC Polycarbonate
Mount Ceiling surface mounting, Wall surface mounted
Environment Indoor, Outdoor
General application Hospitality
Operating temperature range (°C) -20°C...+40°C
Performance ambient temperature Tq (°C) 25
ETIM Class EC002892
E-number FI 4579593
Warranty 5 years
Optical data
Fixture luminous flux (lm) 2800
Luminaire efficacy (lm/W) 118
Colour temperature (K) 4000
Light colour Warm White
CRI (Ra) 80
Colour Variation Initial (SDCM) SDCM5
Distribution type Diffuse, Symmetric
Photobiological Risk Group RG0
Electrical data
Total power consumption (W) 24
Mains voltage (V) 220-240V
Lamp power factor 0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ? xx.x % 15
Electrical protection Class II
Control gear type LED driver constant current
No. Of switching cycles before premature failures >50000
Dimmable No
Inrush Current (A) 10
Glow Wire Test (°C) 650
Nominal Frequency (Hz) 50/60Hz
Max. Luminaires per 10A C Breaker 38
Max. Luminaires per 13A C Breaker 47
Max. Luminaires per 16A C Breaker 57
Max. Luminaires per 20A C Breaker 66
Max. Luminaires per 10A B Breaker 30
Max. Luminaires per 13A B Breaker 38
Max. Luminaires per 16A B Breaker 45
Lifetime data
Lifespan L70 B50 100000
Lifespan L80 B50 100000
Lifespan L90 B50 71000
Physical data
Housing colour RAL 9003 - Signal white
IP rating IP66
IK rating IK10
Diffuser finish Diffuse
Diffuser material PC Polycarbonate
Nominal Product Height (mm) 111
Nominal Product Diameter (mm) 350
Weight (kg) 1.25
