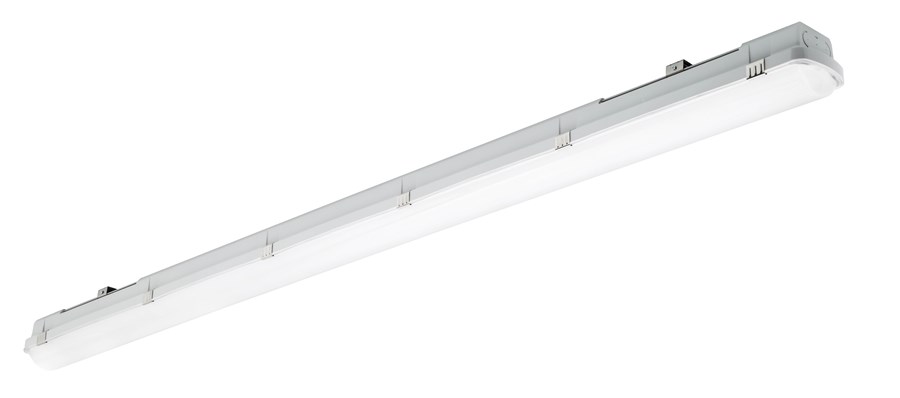

Product name Resisto 1500 IP66 7600lm 840 Technology LED Cap/Base N/A Housing PC Polycarbonate Mount Ceiling surface mounting, Suspended, Wall surface mounted General application Logistics & Industry Operating temperature range (°C) -20°C...+40°C Performance ambient temperature Tq (°C) 25 ETIM Class EC002892 E-number FI 4357057 Warranty 5 years Optical data Fixture luminous flux (lm) 7600 Luminaire efficacy (lm/W) 138 Colour temperature (K) 4000 CRI (Ra) 80 Colour Variation Initial (SDCM) SDCM5 Colour Consistency (SDCM) 5 Beam Angle (°) 110 Distribution type Diffuse Glare control < 25 Photobiological Risk Group RG1 Electrical data Total power consumption (W) 55 Mains voltage (V) 220-240V Lamp power factor 1 THD (at 230 V, 50 Hz, full load, at 100% dimming level) ? xx.x % 20 Electrical protection Class I Control gear type LED driver constant current No. Of switching cycles before premature failures >50000 Dimmable No Dimming method N/A Drive current (mA) 350 Inrush Current (A) 16 Inrush Duration (µs) 40 Glow Wire Test (°C) 850 Energy Efficiency Class (A->G) of contained light source D, D(more than 1 Light Source) Nominal Frequency (Hz) 50/60Hz LED Flickering Rate Ultra low (5% or less) Max. Luminaires per 10A C Breaker 24 Max. Luminaires per 13A C Breaker 32 Max. Luminaires per 16A C Breaker 39 Max. Luminaires per 20A C Breaker 49 Max. Luminaires per 10A B Breaker 24 Max. Luminaires per 13A B Breaker 32 Max. Luminaires per 16A B Breaker 39 Max. Luminaires per 20A B Breaker 49 Lifetime data Lifespan L70 B50 100000 Lifespan L80 B20 69000 Lifespan L90 B10 31000 Physical data Housing colour Grey IP rating IP66 IK rating IK08 Diffuser finish Frosted Diffuser material PC Polycarbonate Nominal Product Length (mm) 1500 Nominal Product Width (mm) 87 Nominal Product Height (mm) 80 Weight (kg) 1.72
