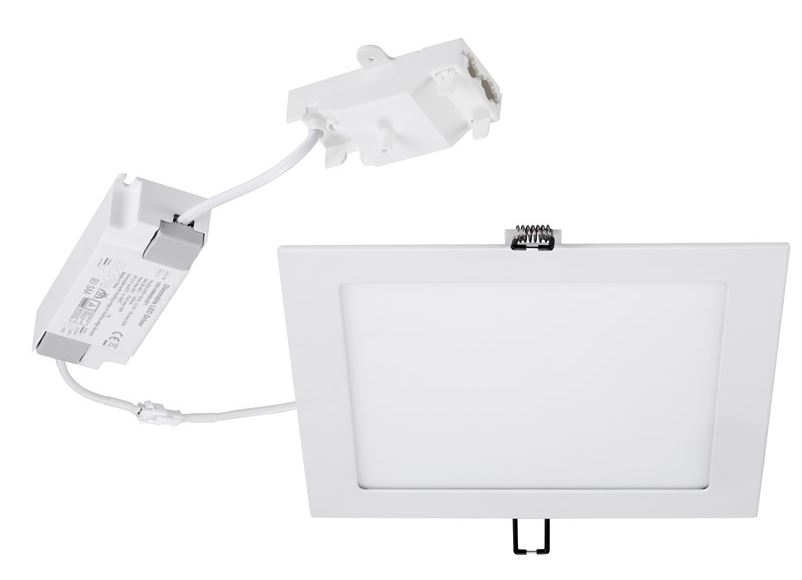

LED PANEL 17W NÉGYZET SÜLLY 200mm

Product name START eco Downlight Flat 206 Square IP44 1700lm 840 DIM Technology LED Housing Aluminium Mount Ceiling recessed mounting General application Hospitality Operating temperature range (°C) -20°C - 40°C Performance ambient temperature Tq (°C) 25 ETIM Class EC001744 E-number FI 4278191 Warranty 3 years Optical data Fixture luminous flux (lm) 1700 Luminaire efficacy (lm/W) 100 Colour temperature (K) 4000 CRI (Ra) 80 Colour Variation Initial (SDCM) SDCM5 Beam Angle (°) 120 Distribution type Symmetric Glare control < 28 Photobiological Risk Group RG0 Electrical data Total power consumption (W) 17 Mains voltage (V) 220-240V~ Lamp power factor 0.9 Electrical protection Class II Control gear required No Control gear type LED driver constant current Dimmable 1 Drive current (mA) 450 Inrush Current (A) 4.16 Inrush Duration (µs) 112 Glow Wire Test (°C) 650 Nominal Frequency (Hz) 50Hz LED Flickering Rate Ultra low (5% or less) Max. Luminaires per 10A C Breaker 67 Max. Luminaires per 13A C Breaker 87 Max. Luminaires per 16A C Breaker 107 Max. Luminaires per 20A C Breaker 133 Max. Luminaires per 10A B Breaker 67 Max. Luminaires per 13A B Breaker 87 Max. Luminaires per 16A B Breaker 107 Max. Luminaires per 20A B Breaker 133 Lifetime data Lifespan L70 B50 30000 Physical data Housing colour RAL 9003 - Signal white IP rating IP44/20 IK rating IK06 Diffuser finish Opal Diffuser material Other Nominal Product Length (mm) 226 Nominal Product Width (mm) 226 Nominal Product Height (mm) 21 Weight (kg) 0.626
