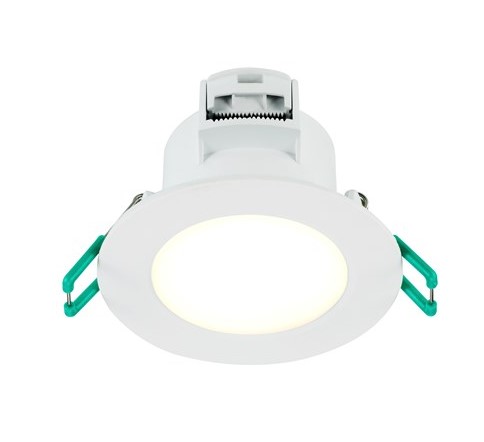

Product name Start Spot 620lm 3CCT DIM IP65 WH Technology LED Cap/Base N/A Housing PC Polycarbonate Mount Ceiling recessed mounting General application Hospitality, Residential & Consumer, Retail Operating temperature range (°C) -10°C...+40°C Performance ambient temperature Tq (°C) 25 ETIM Class EC001744 Warranty 3 years Optical data Fixture luminous flux (lm) 620 Luminous flux (lm) 620 Luminaire efficacy (lm/W) 95 Colour temperature (K) 3000 Correlated colour temperature range (K) 2700 - 4000 Light colour Neutral White CRI (Ra) 80 Colour Variation Initial (SDCM) SDCM6 Beam Angle (°) 100 Distribution type Symmetric Photobiological Risk Group RG0 Electrical data Total power consumption (W) 6.5 Mains voltage (V) 220-240V Lamp power factor 0.6 THD (at 230 V, 50 Hz, full load, at 100% dimming level) ? xx.x % 96 Electrical protection Class II Control gear type LED driver constant current Transformer required No Dimmable Yes Dimming method Mains: leading / trailing edge Drive current (mA) 21 Inrush Current (A) 6 Inrush Duration (µs) 100 Glow Wire Test (°C) 650 Energy Efficiency Class (A->G) of contained light source E Nominal Frequency (Hz) 50/60Hz LED Flickering Rate Low (6% - 20%) Max. Luminaires per 10A C Breaker 114 Max. Luminaires per 13A C Breaker 150 Max. Luminaires per 16A C Breaker 192 Max. Luminaires per 20A C Breaker 234 Max. Luminaires per 10A B Breaker 66 Max. Luminaires per 16A B Breaker 114 Lifetime data Lifespan L70 B50 68000 Lifespan L80 B20 39000 Lifespan L80 B10 36000 Physical data Housing colour RAL 9003 - Signal white IP rating IP65/20 IK rating IK03 Diffuser finish Diffuse Diffuser material PC Polycarbonate Reflector finish None Nominal Product Height (mm) 47 Nominal Product Diameter (mm) 87 Cutout Dimensions (W x L in mm or Diameter in mm) 68-74 Weight (kg) 0.07
