> PTC ELLENÁLLÁS 150 Ohm 120°C B59890-C120-A70

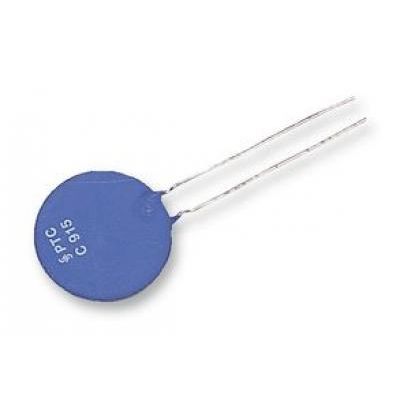

PTC ELLENÁLLÁS 150 Ohm 120°C B59890-C120-A70
Gyártói cikkszám:
|
730411
|
Vonalkód:
|
5993218525661
|
Cikkszám:
|
DIST730411
|
Megnevezés teljes név:
|
PTC ELLENÁLLÁS 150 Ohm 120°C B59890-C120-A70
|
több
keyboard_arrow_down
keyboard_arrow_up
Leírás
THERMISTOR, PTC
Thermistor Type: PTC
Resistance: 150ohm
Thermistor Tolerance: -25% to +25%
Thermistor Case Style: Radial Leaded
No. of Pins: 2
Operating Temperature Min: -40°C
Operating Temperature Max: 125°C
SVHC: No SVHC (16-Dec-2013)
Body Diameter: 4mm
Current Temperature: 120°C
Lead Length: 25mm
Operating Temperature Range: -40°C to +125°C
Operating Voltage: 265V
Reference Voltage: 220V
Resistance Temperature: 25°C
Resistance Tolerance: ± 25%
Resistance Tolerance +: 25%
Resistance Tolerance -: 25%
Series: B598
Tripping Current: 0.06A
Tripping Temperature: 120°C
Voltage Rating V DC: 265V
PTC ELLENÁLLÁS 150 Ohm 120°C B59890-C120-A70
Nincs készleten
×
Adatok
Megnevezés teljes név
PTC ELLENÁLLÁS 150 Ohm 120°C B59890-C120-A70
Leírás
THERMISTOR, PTC
Thermistor Type: PTC
Resistance: 150ohm
Thermistor Tolerance: -25% to +25%
Thermistor Case Style: Radial Leaded
No. of Pins: 2
Operating Temperature Min: -40°C
Operating Temperature Max: 125°C
SVHC: No SVHC (16-Dec-2013)
Body Diameter: 4mm
Current Temperature: 120°C
Lead Length: 25mm
Operating Temperature Range: -40°C to +125°C
Operating Voltage: 265V
Reference Voltage: 220V
Resistance Temperature: 25°C
Resistance Tolerance: ± 25%
Resistance Tolerance +: 25%
Resistance Tolerance -: 25%
Series: B598
Tripping Current: 0.06A
Tripping Temperature: 120°C
Voltage Rating V DC: 265V
