> WIKA adapter M12-WI-STK 14061115

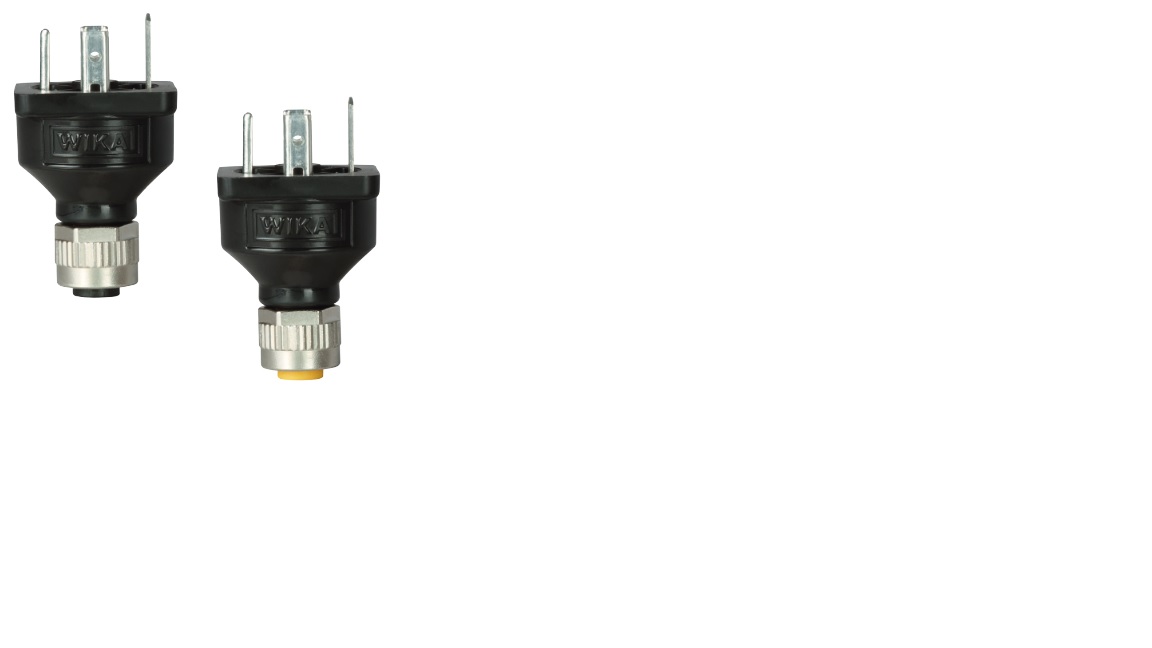

WIKA adapter M12-WI-STK 14061115
Gyártói cikkszám:
|
14061115
|
Szín:
|
FEKETE
|
Márka:
|
WIKA
|
Cikkszám:
|
COMPO-4
|
Megnevezés teljes név:
|
WIKA adapter M12-WI-STK 14061115
|
több
keyboard_arrow_down
keyboard_arrow_up
Leírás
Specifications
Specifications Connector adapter M12 x 1
Version suitable for connection method 2-wire, 3-wire, 4-wire or 4...20 mA
Electrical connection M12 x 1, 4-pin circular connector to angular connector DIN EN 175301-803 form A
Dielectric strength 500 V
Transition resistance (tested at 21 °C) Max. 0.1 ?
Ambient and storage temperature range (standard) -40 ... +115 °C (-40 ... +239 °F)
Vibration per DIN EN 60068-2-6 10 ... 2,000 Hz, 10 g
Material case PA
Material union nut Zinc diecast
Material contacts Copper-zinc alloy, tinned
RoHS compliant Yes
Mating cycles min. 10,000
Ingress protection ¦ Case with connected connector ¦ Coupler connector, not connected
IP 65 per IEC 60529/EN 60529 1)
IP 00 per IEC 60529/EN 60529
WIKA adapter M12-WI-STK 14061115
Nincs készleten
×
Adatok
Gyártói cikkszám
14061115
Megnevezés teljes név
WIKA adapter M12-WI-STK 14061115
Leírás
Specifications
Specifications Connector adapter M12 x 1
Version suitable for connection method 2-wire, 3-wire, 4-wire or 4...20 mA
Electrical connection M12 x 1, 4-pin circular connector to angular connector DIN EN 175301-803 form A
Dielectric strength 500 V
Transition resistance (tested at 21 °C) Max. 0.1 ?
Ambient and storage temperature range (standard) -40 ... +115 °C (-40 ... +239 °F)
Vibration per DIN EN 60068-2-6 10 ... 2,000 Hz, 10 g
Material case PA
Material union nut Zinc diecast
Material contacts Copper-zinc alloy, tinned
RoHS compliant Yes
Mating cycles min. 10,000
Ingress protection ¦ Case with connected connector ¦ Coupler connector, not connected
IP 65 per IEC 60529/EN 60529 1)
IP 00 per IEC 60529/EN 60529
